UL Cable Line Specification
Applied Cable Diameter : AWG 20 ~ 34
Extruder Diameter : Ø35 ~Ø50
Applied Material : PVC, HF, XLPE, HPDE
Line Speed : Max 900 MPM (Depends on Total Countered Length)
Single Auto Take Up : Ø300, Ø400 (Plastic Bobbin)
Pail Packer : Ø570, Ø760 H : 700 mm(max) (Cartoon Bobbin)
Auto Coiler : OD - Ø350, ID - Ø150 H - 100mm(MAX) (Coil Type)

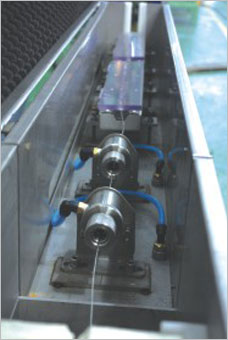

(Diameter Control, Pre-Heater, Spark Tester, And Lump Detector will be included in every UL cable line.) |
UL Cable

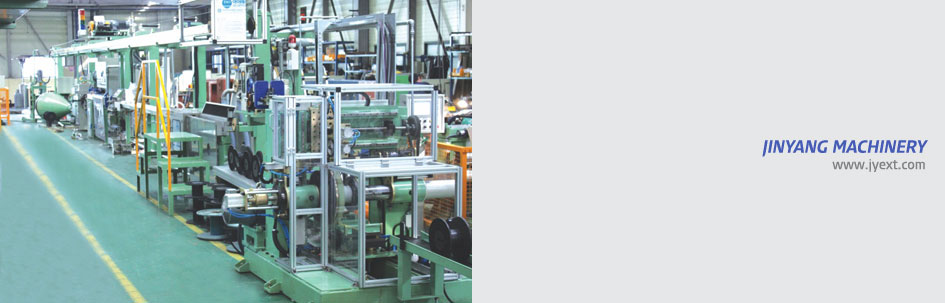

Jin Yang's UL line is designed to meet the customer's satisfaction in any way possible.

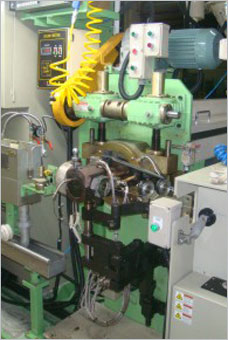

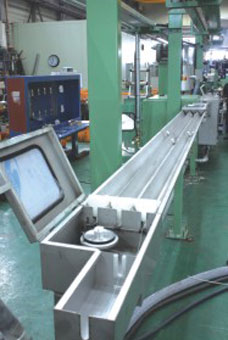

At the same time, it is designed to be easy to operate. All the machines' covers are designed to open and close with a quick snap hook. The capstan's wheels are made of Stainless steel to prevent abrasion and corrosion even over a long lifetime. The take-ups can be made to meet the customer's needs in an way: bobbin, drum, cartoon box, pail pack and coil.
Changing the fully loaded bobbins or coils can be configured as manual or automatic |
